IST4000 PERFORMANCE ULTRASONIC CLEANER

  • Overall dimensions: 2300(l) x 1700(w) x 1700(h)mm
  • Tank dimensions: 2000 x 1500 x 1500mm
  • Ultrasonic power: 16.8kw peak
  • Transducer configuration: Side wall mounted
  • Ultrasonic frequency: 30KHz
  • Heating: 2 x 12kw
  • Tank material: Stainless steel 2mm SUS316
  • Tank construction: Double braced, TIG weld
  • Cover material: Stainless steel SUS304
  • Pump and filter: Yes
  • Drain tap: 2” B.S.P.
  • Ultrasonic control: Adjustable digital timer
  • Heat control: Adjustable digital thermostat
  • Tank capacity: 4000L
  • Control cabinet: 1200(l) x 400(w) x 2000(h)mm
  • Power supply: AC 380 – 415V, 50/60Hz 3ph
  • Power consumption: 34kw full loading
  • Gross weight: 1500kg
  • Approvals: CE

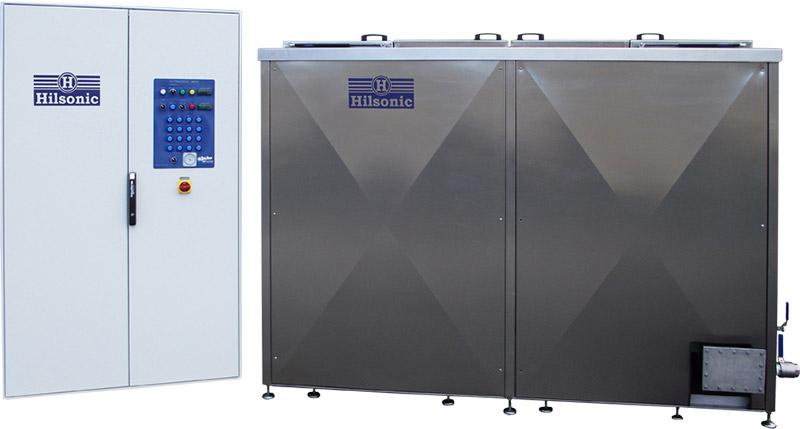

4000-Clip1
